2026 New Arrival!
JA Solar BiFacial 435W Solar Double Glass Panels
Here is a video showing similar Bifacial Panels – explaining the benefits of both sides power generation.
In the lab, the front generates 435W and the rear side with reflector, another 100W, total 535W!
When building Solar Carport, Patio , Trellis or Awning, Green house, Sun room, Solar Wall etc.
Here is a solar glass that you can use as building material.
If you had lands for this kind of stand alone metal structure? Then we will recommend JA Solar or any other brands, use their Bifacial Solar Panels that the front can absorb incoming solar energy and the back can absorb reflected sunlight from under the panels.
***Concentration of Sun lights
If you had enough of space/land, you can add reflector/mirror to increase the amp production
Overheating will not be a problem for mounting PV on top of a metal structure.
Air flow from beneath can help to cool the energized solar array!
***Maximum Concentration Ratio for Silicon Panels is 3X
Maximum Concentration Ratio for Triple Junction panels is 10X
**********************************************************************************

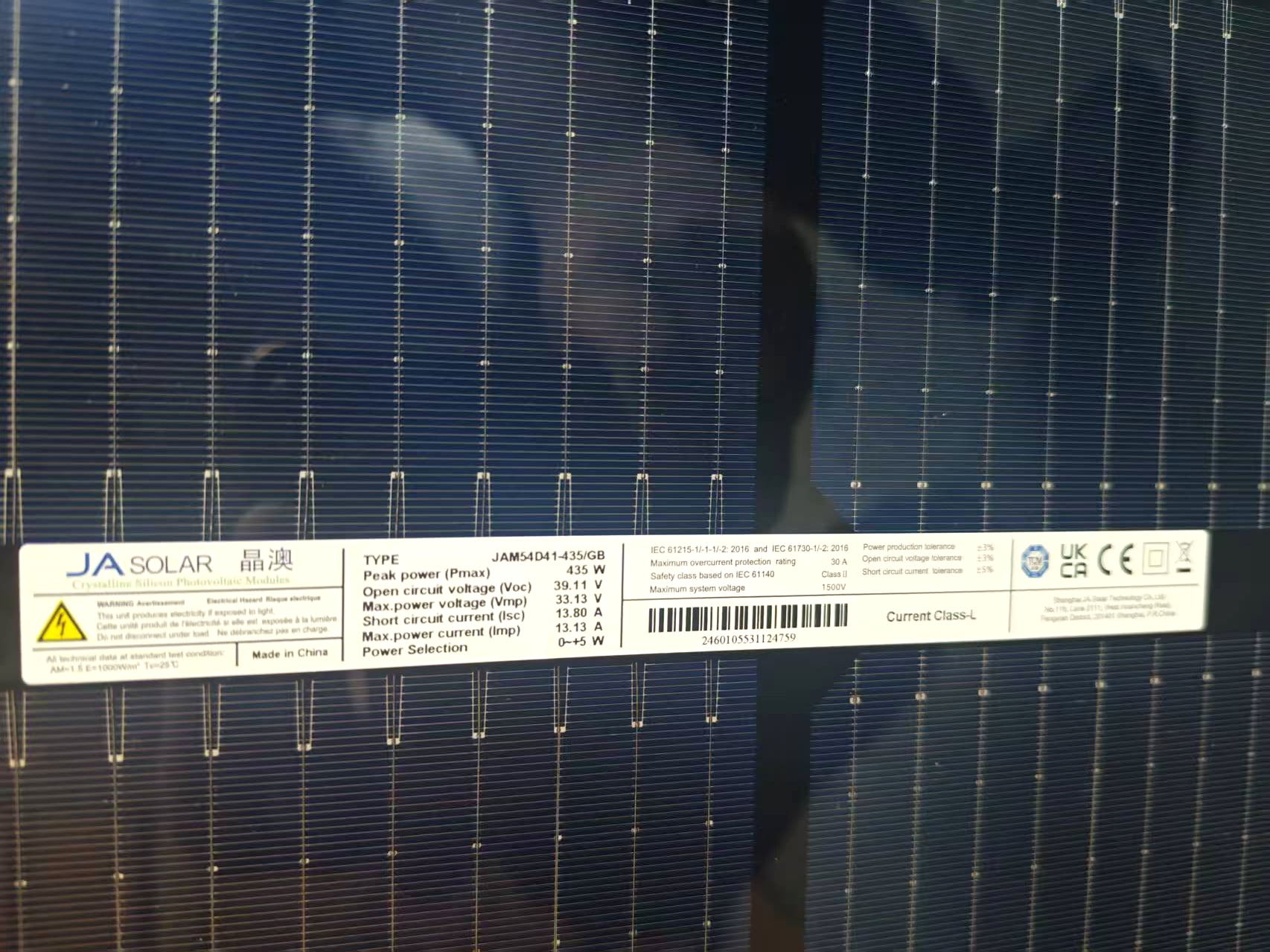

Small bifacial dual Glass, 108 -Cell, 16BB Hal-Cut Mono Perc solar panels is 435W , sells for @$239
With proper reflector – front 435W, back 100W – this is a total 535W solar panels.
Dimension: 56.5″x 37.2″ x 1″ Weight: 47.5 lbs
Vmax: 33.13V
Voc: 39.11V
Imax: 13.13A
Isc: 13.80A

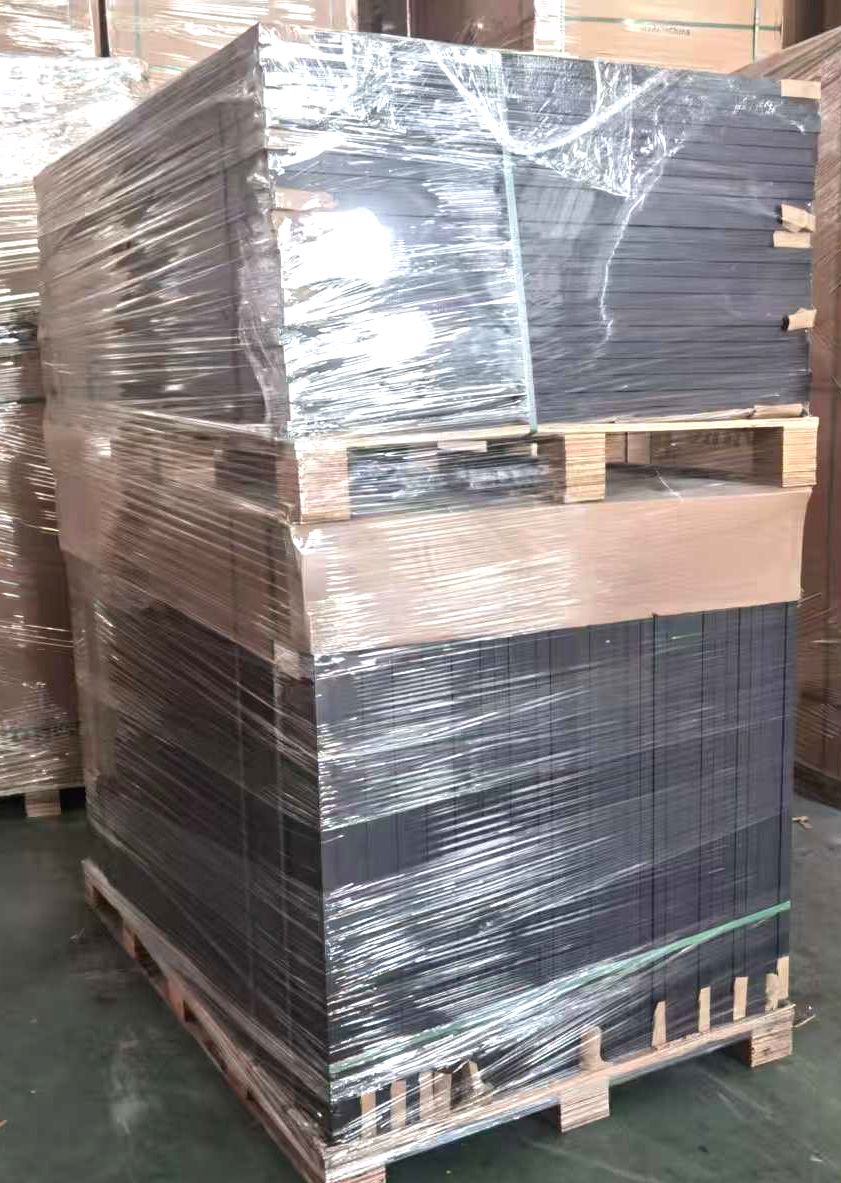

36 Panels per Pallet, buyers pay freight for shipping within US lower 48 States
Sales Price for full pallet @$229
Please click here to download Spec Sheet: JAM54D41-435/GB
**********************************************************************************
Because there is a top Graphene coating to absorb lights from all angles, designers of solar glass buildings will have more freedom in more atheistic designs. No need to worry must facing the solar glass toward the sun. During Experiment, flat roof and tilting only change 1~2% using this glass panels. Not to worry how to design Solar Glass Building, glass facing or tilting toward the sun is not absolutely necessary!
They are ultra thin, laminated in 2 top/bottom tempered glasses.
So your stand alone metal structure with PV glasses as roof or facade
It can receive sunlight from above and then reflected sunlight from below. Double exposure!
******************************************************************************************************
